- 【Excellent Quality Workmanship】:The 5G Micro Digital Servo made with excellent Plastic Shell material (lightweight and fast heat dissipation) and high-precision Metal Gear (better muting effect and prevent tooth sweeping) has a longer service life.
- 【High Performance Digital Standard】:The 5G Mini Digital Servo with electronic burn protection can achieve Low Noise, Good Stability, Small Vibration, Smooth Operation, Excellent Linearity, Precision Control, Fast Response.
- 【Coreless Motor】:5G Nano servo is coreless motor, which can provide better mute effect and quick response ability for the servo, greatly improving the accuracy of your RC models, and also greatly reducing the probability of servo damage.
- 【Widely Use 】:The Mini Digital Servo is suitable for Boat,RC Aircraft,RC Helicopters,RC Drones,Toys,etc.Especially this servo is most suitable for micro control fields such as aircraft models, drones, toys, intelligent switches, etc
- 【Performance 】Small servo motor compatible with JR interface. Micro servo running speed (at no load) : 0.08 sec/60° (4.8V) 0.07 sec/60°(6V). Running angle: 180 degree.
- 【Note】:In the frequency range of 500~2500us, the maximum controllable angle of the servo can be accurately achieved at 180 degrees, and the servo can achieve a control angle of 90 degrees under the control of a transmitter
Specifications:

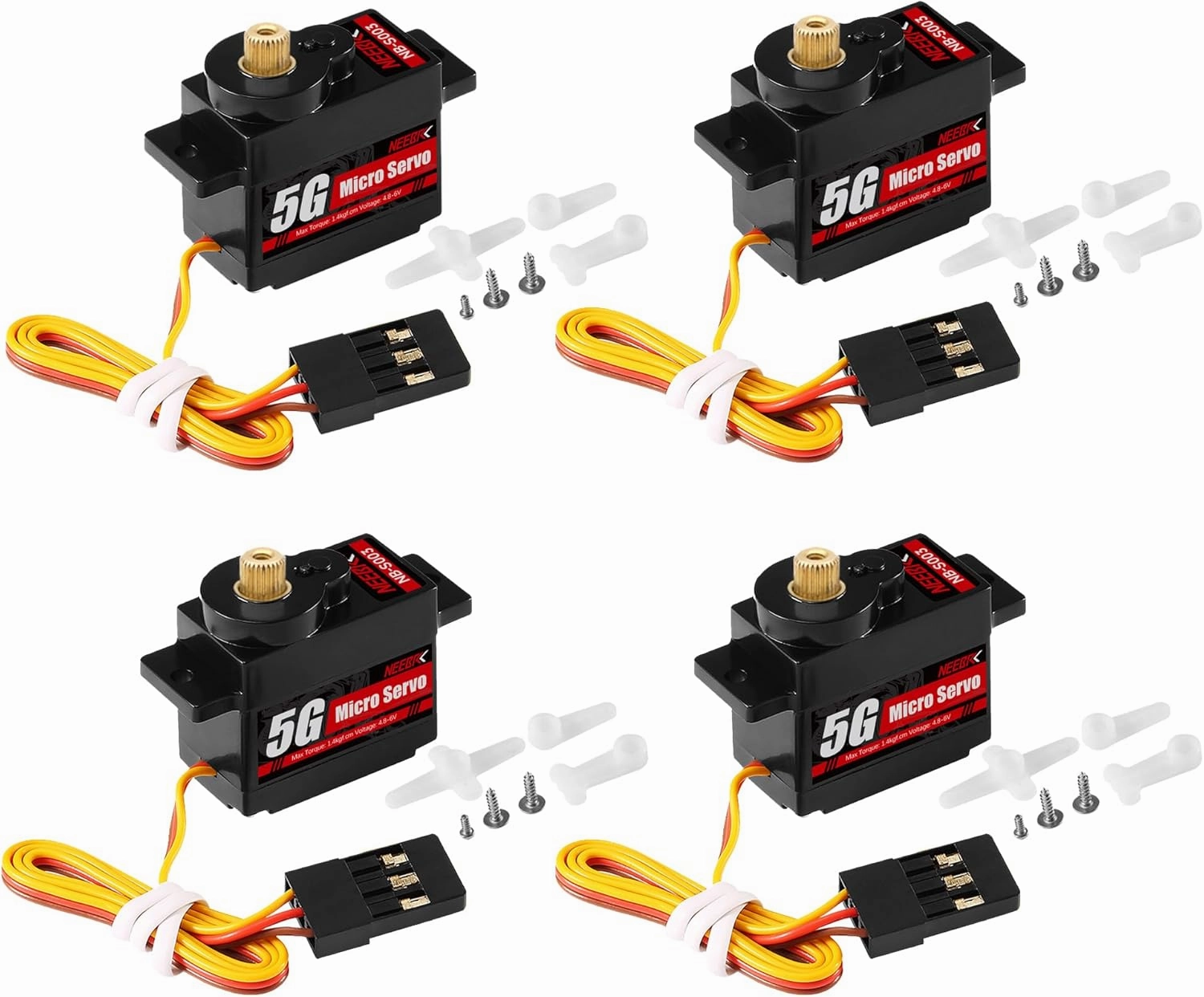

Item name: NEEBRC NB-S003
Quantity: 1pcs
Operating Voltage : 4.8~6V DC
Max. Torque : 1.4kgf·cm
No Load Speed : 3.7V≦0.08sec/60° ; 4.2V≦0.07sec/60°
Stall Current:3.7V≦320mA;4.2V≦350mA
Consumption Current* (No Load):3.7V ≦50mA ;4.2V≦60mA
Max. Operating Travel Angle:180° ±10° (500~2500 us)
Dead Band Width: ≤ 1us
Mechanical Limit Angle: 360°
Communication Interface: PWM
Motor Type: Coreless motor
Case Material: ABS
Gear Set Material : Plastic gear
Weight: 3.3g
Size: 16.7 × 8.2 × 17mm
Length of Connector cable:JR 200±5mm (exposed without plug)
