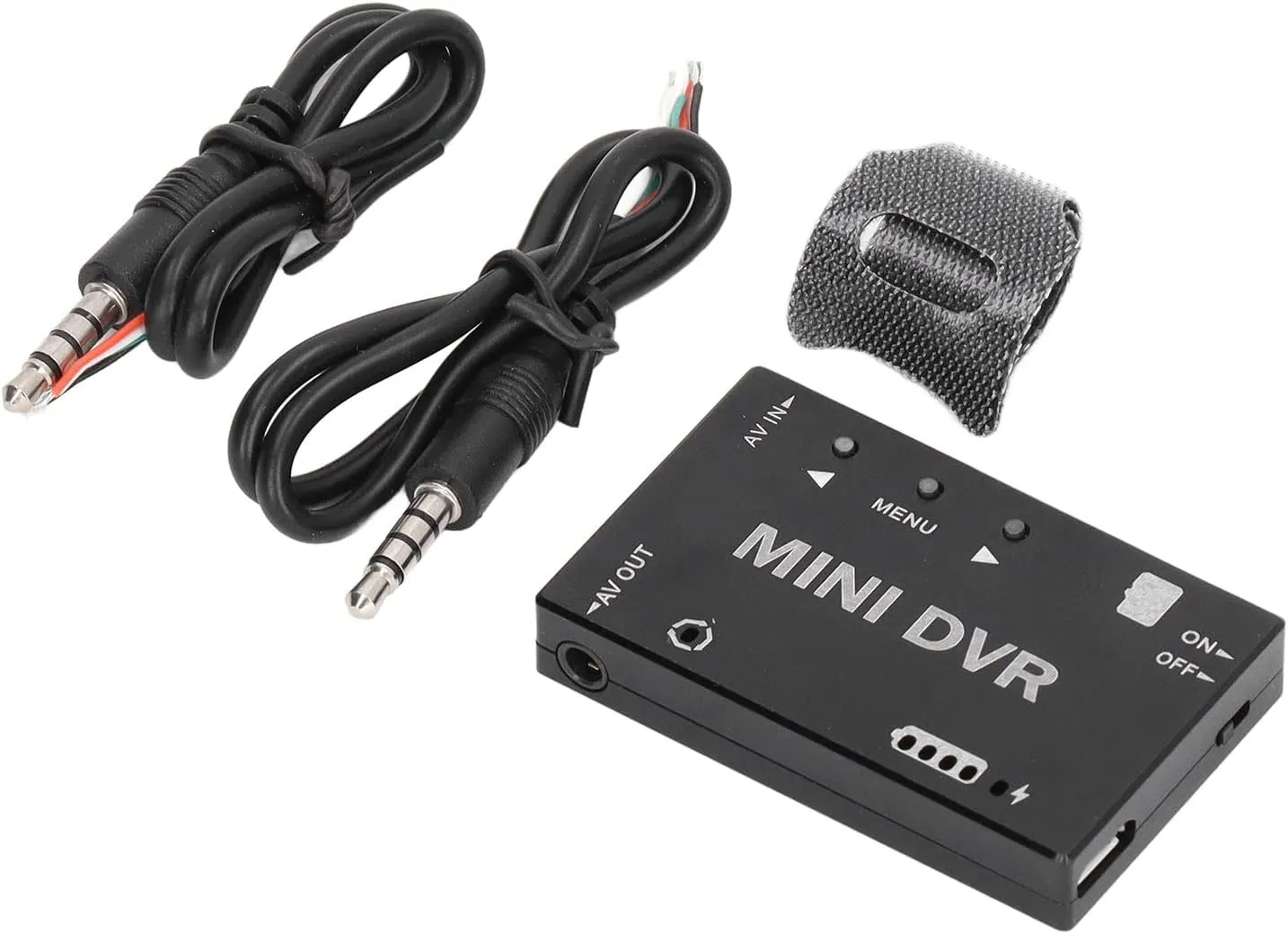

- ❥❥ Premium Quality: This mini FPV DVR module is made from a aluminum alloy shell. It's lightweight, compact, and designed for low power consumption with a working current of 200 ma. for RC model enthusiasts looking for and RC equipment.
- ❥❥ Extended Use: The module features great performance with up to 1.5 to 2 hours of working time. It supports a 32GB small memory card (level 10 recommended) and comes with a built-in 3.7V, 400mah lithium ion battery to ensure continuous recording.
- ❥❥ Multifunctional Device: Smart and user-friendly, it comes with a multi-language menu featuring 11 different languages for selection. Plus, it includes a universal USB charging interface and a 4-level battery power indicator to keep you informed about power status.
- ❥❥ Superior Input and Output: Equipped with CVBS input (which includes a built-in video decoder), the module supports playback and AV output (with built-in video encoder). It's flexible with its video input format, switching between NTSC and PAL to meet your recording needs.
- ❥❥ Exceptional Performance: Produced with professional manufacturing techniques, the mini FPV DVR offers high accuracy to deliver stable performance for your RC and drones. It's an ideal accessory for hobbyists looking for an efficient and recording device.
Specification
Item Type: Mini FPV DVR Module
Material: Aluminum Alloy, Electronic Components
Product Size: Approx. 53 x 33 x 9mm / 2 x 1.3 x 0.4in
Weight: Approx. 64g / 2.3oz
Color: Black
System Startup Time: 3 Seconds
Video Input Format: NTSC, PAL
Video Input Impedance: 75Ω Typ
Video Compression Format: MJPEG
Recording File Resolution: VGA(640x480), D1(720x480), HD(1280x720) Optional
Recording File Format: AVI
Recording Sound: On or Off Optional
Cycle Recording Time: 10min, 20min, 30min Optional
Frame Rate: 30 Frames
Memory Card: Small memory card supports up to 32GB (C10 recommended) (purchased separately)
Optical Frequency: 50Hz, 60Hz optional
Video Playback: CVBS Output (Connected To Display)
Audio Input Interface: 3.5mm AV Jack
Audio Output Interface: 3.5mm AV Jack
Charging Interface: Micro USB Interface
Charging Voltage: 5V DC
Charging Current: 500mA
Battery (Non Removable): 3.7V, 400mah Lithium Ion Battery (Built In)
Battery Life: 1.5 to 2 hours per working load.
Operating Temperature: -10 to 60°C
Working Humidity: 85% RH
Menu Language: 11 Language Choices
Menu Language: English, French, German, Italian, Spanish, Portuguese, Traditional Chinese, Simplified Chinese, Japanese, Russian And Korean.
Suitable: for FPV Drone, for RC Model Racing Car
