- Waterproof and Dustproof: Brushless 60 A RC ESC is suitable for all-weather sports competitions; Note: Uninstall the cooling fan before using the ESC in the water; clean and dry it as soon as possible after use to avoid rusting of the connectors
- External Programming Port: Easy to connect to a programme card when setting up the ESC. Compatible with optional equipment - portable digital LED programme card, especially suitable for outdoor use
- Overheat Protection: Protection features include low voltage cut-off protection; overheat protection; loss of throttle signal protection; motor lockout protection
- Reliable Performance: Proportional braking with 4 levels of maximum braking force adjustment and 8 levels of dragging brake force adjustment; 9 steps of acceleration (ram) adjustment from "soft" to "very aggressive" to suit different types of cars, tyres and tracks
- Application: This brushless ECS is suitable for 1/10 short range trucks. Built-in switching mode BEC, maximum output 6 Amp at 6 V, compatible with various servos
Description:
-The Brushless 60A RC ESC is designed to be waterproof and dustproof for all-weather use. It can be adapted to different types of vehicles, tyres and tracks, and is suitable for 1/10 short range trucks. With multiple protections, you can use it with confidence.
Key Features:
-All-weather Use: Brushless 60A RC ESC is waterproof and dustproof, designed for RC cars, suitable for all-weather sports racing.
-Applicability: Built-in switch mode BEC output: 5.85V/3A. perfectly suitable for 1/10 RC trucks.
Specification:
Name: Automotive Sensorless Brushless ESC
Material: ABS
Model: WSDT-60A
Continuous current: Fwd. 60A/Rev. 60A
Peak current: Fwd. 180A/Rev. 180A
Resistance: 0.001Ω
Applicable models: 1:10 on-road/off-road
Battery: 4-9 Ni-MH batteries, 2-3S Li-Ion batteries
Motor Limitations:
For 2S Lipo or 6 cell NiMH batteries:
On-road: 3656 size or smaller motors
Kilovolts <6000
Off-Road/SUV: 3656 size or smaller motor with KV <4000
For 3S Lipo or 9-cell NiMH batteries:
On-road: 3656 size or smaller motor
KV<4000
Off-Road/SUV: 3656 size or smaller motor KV<3000
BEC output: 5.85V/3A
Cooling Fan:
Direct from battery, no regulation required
Stock fan works with 2S and 3S Lipo

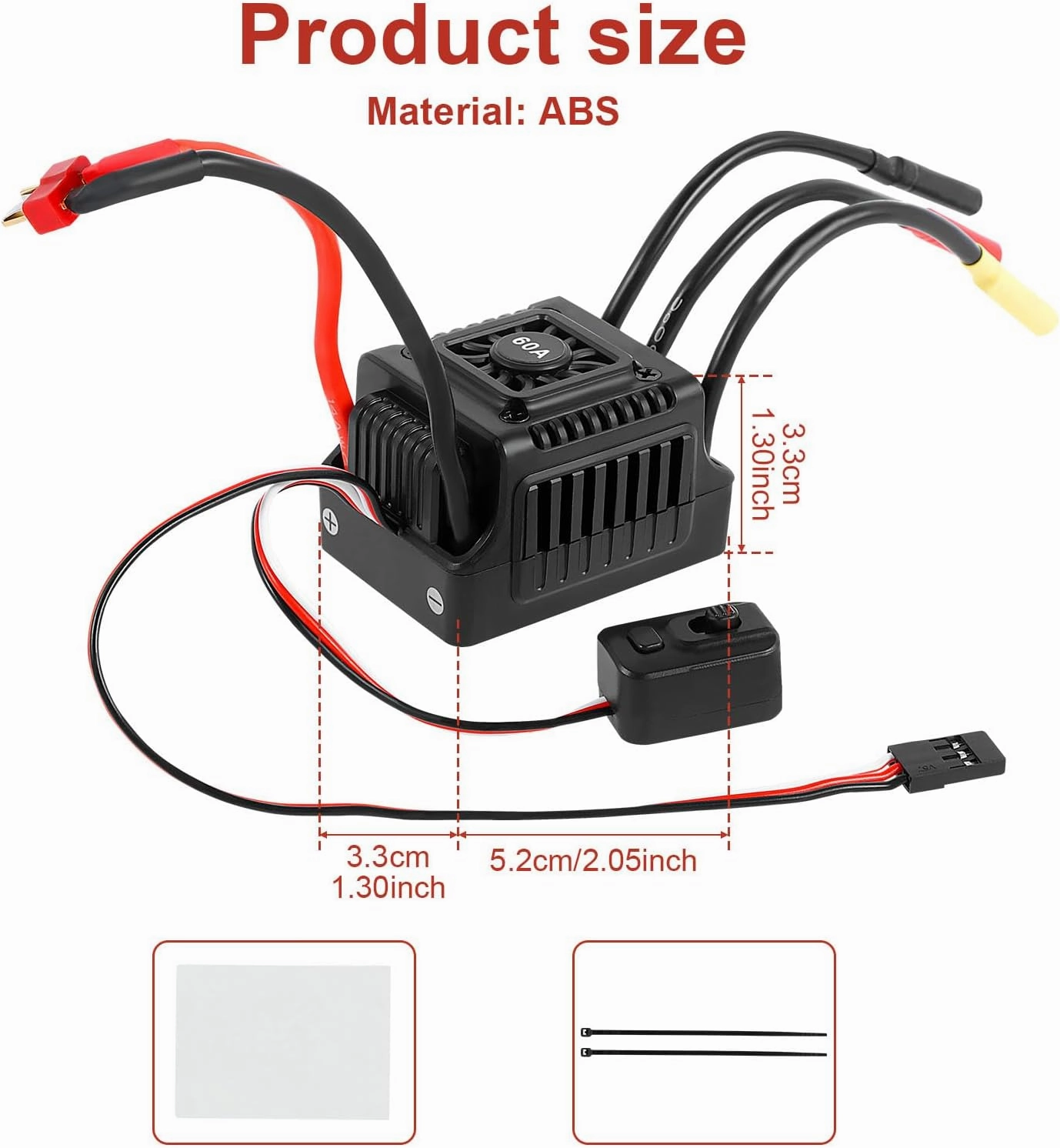

Size: 5.2 x 3.3 x 3.3cm/2.05 x 1.3 x 1.3in
Color: Black
Style(optional): XT60 Plug, T Plug
Parts List:
1 x ESC
1 x Instruction Manual
1 x Double Sided Adhesive
2 x Rolled Tape
Notes:
1.There may be slight differences between the picture and the actual color of the commodity. We will try our best to show you the exact color.
2.Please allow slight dimension difference due to manual measurement.
